factory price copper tube fin adiabatic dry air coolers

  • 1 - 9 Pieces
    $1,200.00
  • >=10 Pieces
    $900.00
Model Number:
CNV
Power:
220V/380V/440V
Lead Time:
Quantity(Pieces) 1 - 10 11 - 50 >50
Est. Time(days) 25 45 Negotiable
Customization:
Customized logo (Min. Order: 1 Pieces)
Customized packaging (Min. Order: 1 Pieces)

More

Graphic customization (Min. Order: 1 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Type:
dry air cooler
Mounting:
Floor Standing
Warranty:
1 year
After-sales Service Provided:
Free spare parts
Place of Origin:
Jiangsu, China
Brand Name:
WKDL
Certification:
CE
Operating Voltage:
380/400 VAC
Condition:
New
Applicable Industries:
Manufacturing Plant, Food & Beverage Factory
Key Selling Points:
Accurate temperature control
After Warranty Service:
Video technical support
Local Service Location:
None
Showroom Location:
None
Refrigerant:
R22, R134A, R404A, R410A
Tube material:
Stainless steel
Fin material:
Aluminum
Application:
Cooling equipment chiller
Cooling capacity:
150kw
Fan type:
dia. 800mm axial fan
Airflow:
Downflow
Name:
tube and fin type dry air cooler
Compressor:
hermetic scroll
Supply Ability
Supply Ability:
50 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Wooden box
Port
Shanghai / Ningbo
Lead Time :
Quantity(Pieces) 1 - 10 11 - 50 >50
Est. Time(days) 25 45 To be negotiated
Video Description

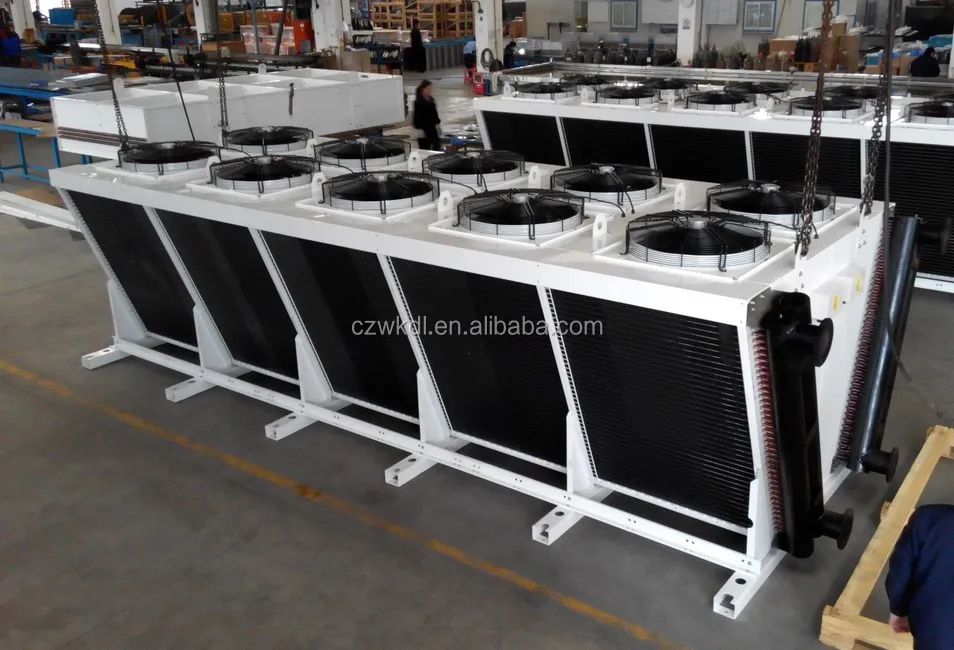

Product Description
Dry cooler provide a smart way to take advantage of free cooling when surrounding temperature allows for it. They are made with cross-fin copper tubes or stainless steel tube and corrugated aluminum fins, resulting in a combination of compact dimensions and high capacity.

Dry cooler can be easily integrated with liquid-cooled plate heat exchangers, especially in free cooling systems.

Dry coolers were designed to achieve an optimized exchange of thermal energy between air and a refrigerant or fluid. In order for dry cooler to work, the air temperature needs to be cooler than water in the system. To cool the system liquid, hot process liquid flows through the dry cooler tubes. The liquid is then cooled by the relatively cold ambient air that is forced through the coil.

The core of our air heat exchangers is the fin coil, built from a circuit of interconnected tube serpentines and fins to increase the heat exchanging surface.
Our Strength


Name: Heat exchange calculation software
Original: Germany


We can design and tailor made for you with your specification.

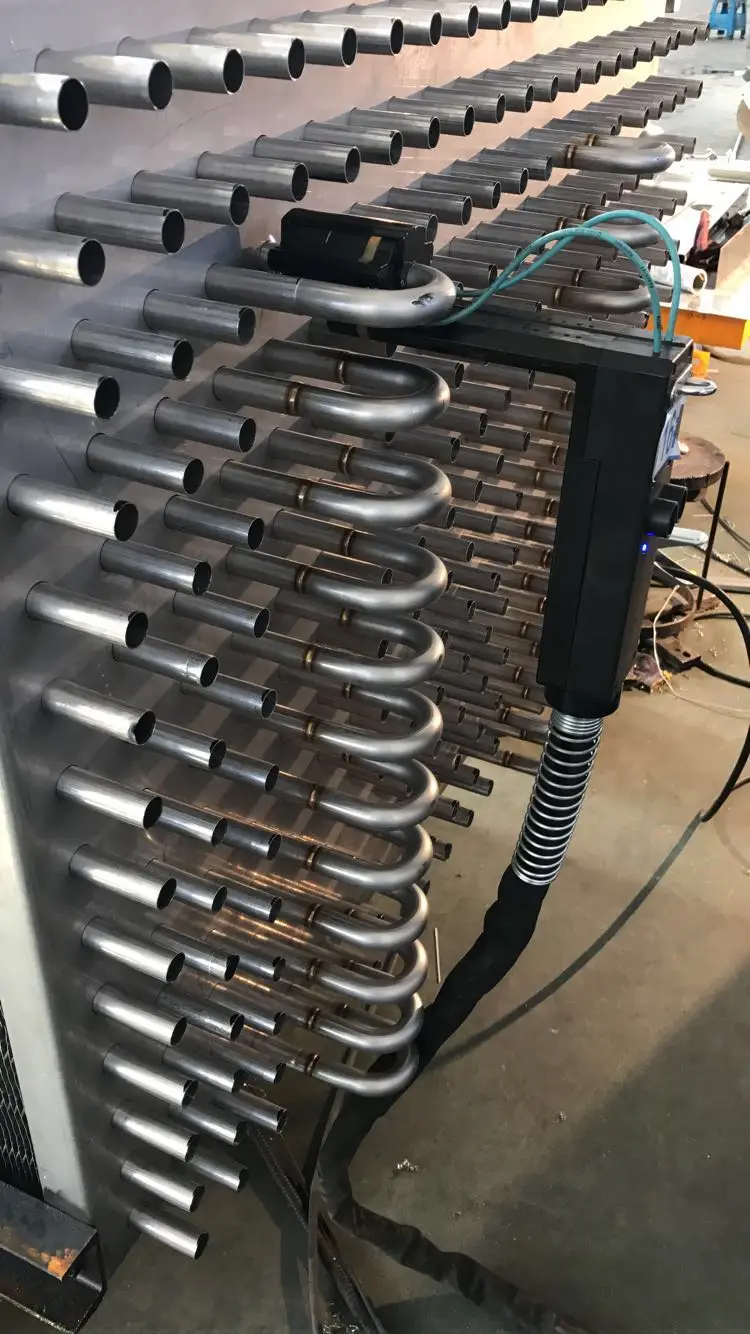

Name: Stainless steel automatic welding machine
Original: Germany

seamless connection and good strength

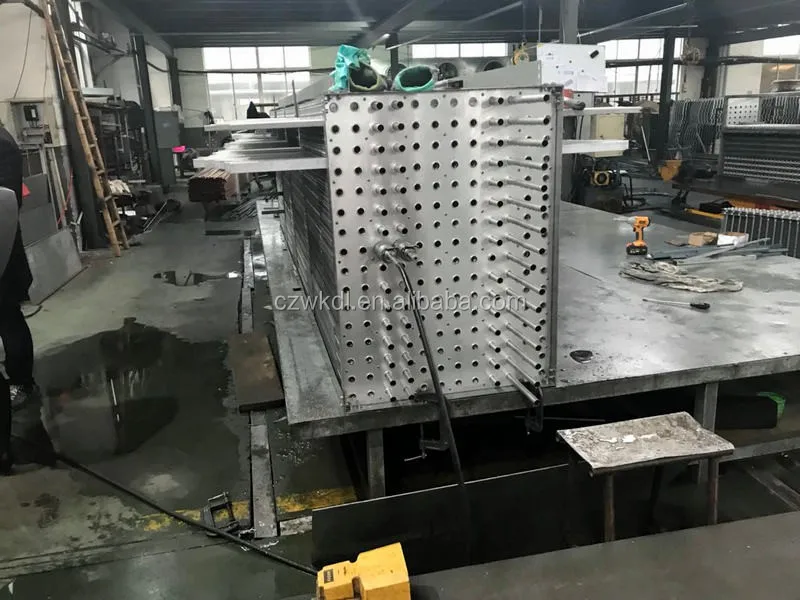

Name:  Water tube expanding

Our water tube expanding pressure ranges from 10MPa to 30MPa. Stainless steel tube test pressure can reach 30Mpa.

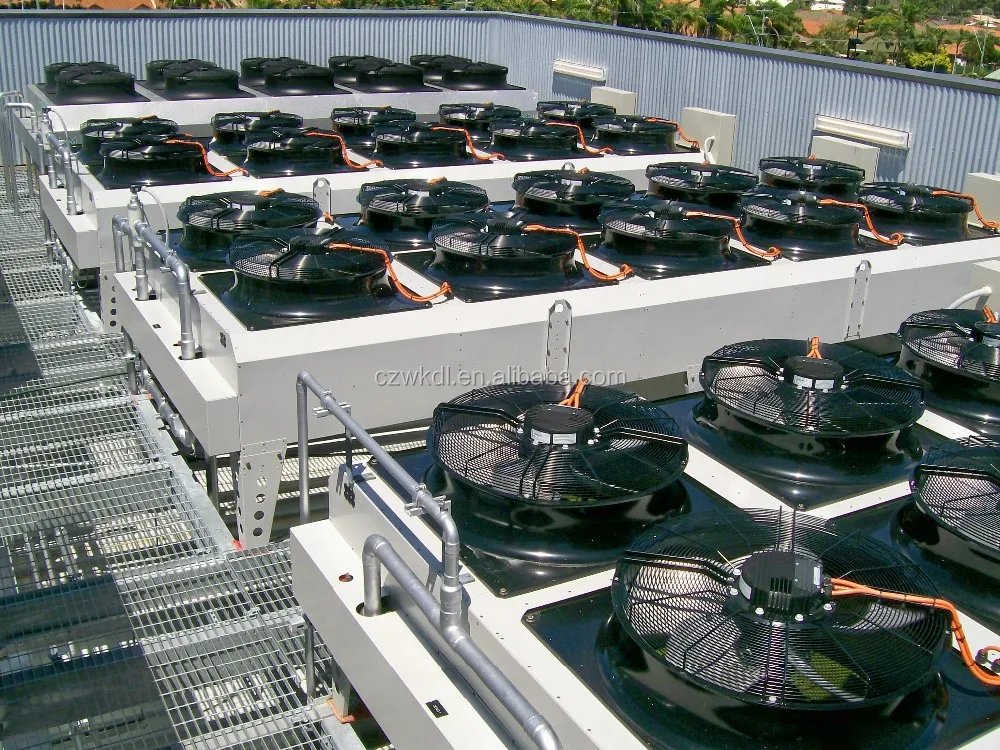

Customer Case

1. Steel Industry -- Electrical Arc Furnace / induction furnace cooling

2. Refinery & petrochemicals -- Reactor column cooling

3. Rubber -- Roller cooling

4. Independent Power Stations -- Cooling of engine jacket water, lube oil and inter-stage cooler

5. Plastics -- Cooling of injection molding machine

6. Textiles -- Condensation of process vapour

7. Refrigeration / Air conditioning -- as condenser for air cooled chillers

8. Power Industry -- Turbine lube oil cooler / turbine intercooler

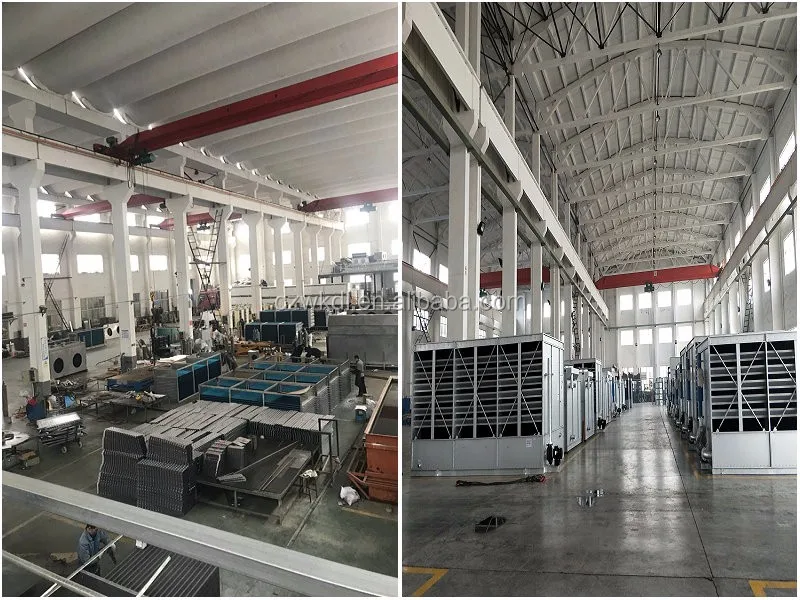

Factory View
Jiangsu Victory Hot-Cooling Technology is a Manufacture + Technical Design company with over 15 years experience.

Our main products are as below :
* Heat exchange coil in all types
* Evaporator &  air cooler ; condenser
* Evaporative condenser / cooling tower

Our heat exchange coil has been exported to USA, Canada, Australia,  South Africa etc.

Packing & Delivery
Packaging
Size
customized
Weight
200kg ~ 500kg



Packaging Details
The normal package is wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Related Products

Products Name with link

91.8% Response Rate

Products Name with link

91.8% Response Rate

Products Name with link

91.8% Response Rate

FAQ
1.What is your delivery time?
   20---30days.
2.What are the payment terms?
   30% T/T before production and balance before shipment
3.What is your warranty?
   One year for the whole unit.
4.What is the valid time of the quotation?
 One month.
5.Can we do our OEM logo?
    Yes,we can do OEM logo for you.
6.Can you do our country plug?
   Yes,we can do the plug according to your request without extra cost.
