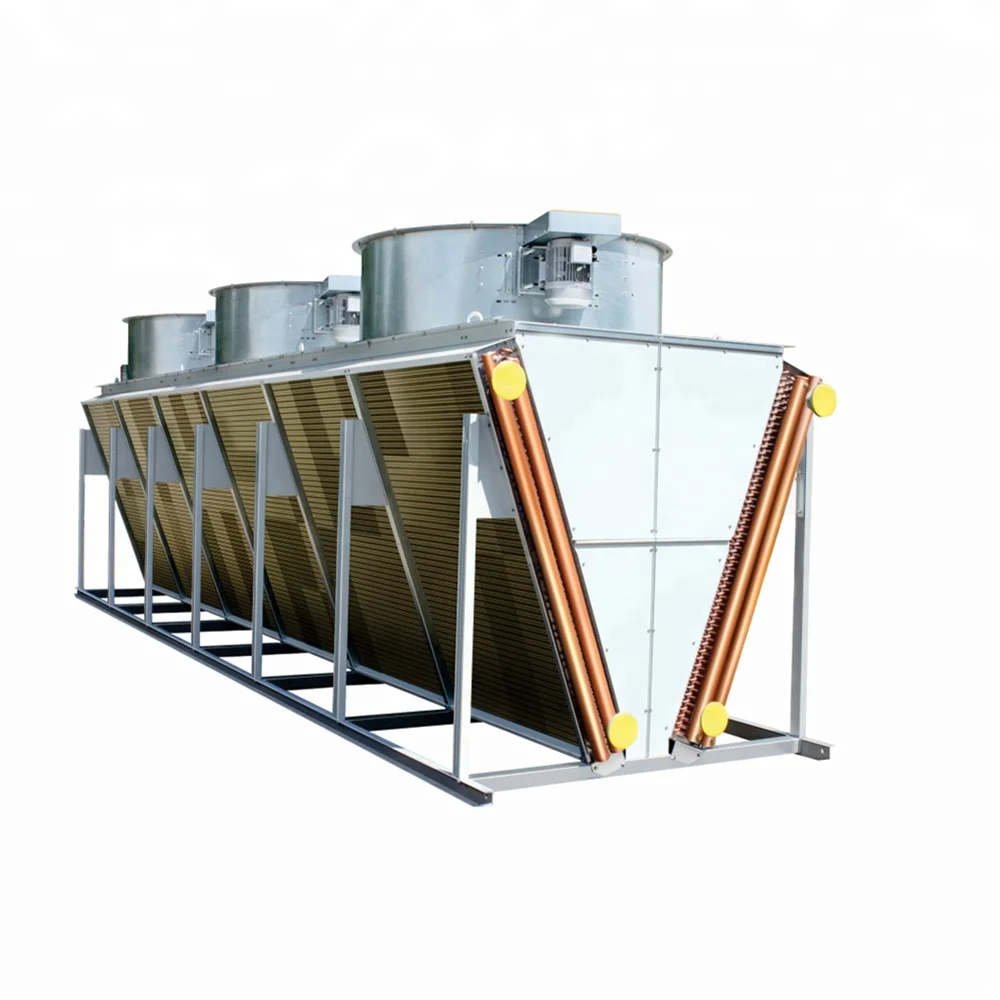

Single row liquid to air glycol dry water cooler for outdoor refrigeration

  • 1 - 9 Sets
    $1,500.00
  • >=10 Sets
    $1,200.00
Model Number:
INV
Power:
110V/220V/380V/440v
Lead Time:
Quantity(Sets) 1 - 2 >2
Est. Time(days) 35 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Samples:
$1,500.00 /Set | 1 Set (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Type:
Fan Coil Unit
Dimension(L*W*H):
Customized made
Mounting:
Floor Standing
Warranty:
1 year
After-sales Service Provided:
Online support
Place of Origin:
Jiangsu, China
Brand Name:
WKDL
Certification:
CE
Operating Voltage:
230 VAC
Condition:
New
Applicable Industries:
Manufacturing Plant, Food & Beverage Factory
Key Selling Points:
Competitive Price
After Warranty Service:
Spare parts
Local Service Location:
None
Showroom Location:
None
Tube Material:
Copper
Fin Material:
Aluminum
Fin Pitch:
2.1mm
Casing Material:
Galvanized Steel with white paint
Cooling capacity:
200 Kw
Installation:
Floor Mounted
Application:
data centre
Supply Ability
Supply Ability:
50 Set/Sets per Month
Packaging & Delivery
Packaging Details
wooden box
Port
Shanghai / Ningbo
Lead Time :
Quantity(Sets) 1 - 2 >2
Est. Time(days) 35 To be negotiated
Product Description
Dry cooler provide a smart way to take advantage of free cooling when surrounding temperature allows for it. They are made with cross-fin copper tubes or stainless steel tube and corrugated aluminum fins, resulting in a combination of compact dimensions and high capacity.
Dry cooler can be easily integrated with liquid-cooled plate heat exchangers, especially in free cooling systems.
Dry coolers were designed to achieve an optimized exchange of thermal energy between air and a refrigerant or fluid. In order for dry cooler to work, the air temperature needs to be cooler than water in the system. To cool the system liquid, hot process liquid flows through the dry cooler tubes. The liquid is then cooled by the relatively cold ambient air that is forced through the coil.
The core of our air heat exchangers is the fin coil, built from a circuit of interconnected tube serpentines and fins to increase the heat exchanging surface.
Advantage of WKDL Dry Cooler

1. Modular designs of dry cooler helps in space optimization

2. High efficient fin to tube heat exchanger

3. Zero water wastage : as it is closed loop operation and now water evaporation

4. Negligible maintenance cost : as water treatment, makeup water and replacement of fills are not required.

5. No periodic cleaning requirement

6. Separates process side from any contamination due to closed loop system

7. Casing made of galvanzied steel, enhanced corrosion resistance.

Detailed Images

Machine Parts

Name: Copper Tube


Tube Dia: 15.88/20/25mm

Tube Material: Titanium / Red Copper / Stainless steel / Aluminum / Carbon Steel

Main Features

Name:  Fin

Fin Thickness: 0.18 /0.2/0.3/0.5/0.8/1.0mm etc

Fin Material: Red Copper/ Stainless Steel/ Aluminum/ Carbon Steel

Fin Coat: Hydrophilic film and anti-corrosion coat

Fin Pitch: 1/2/3/4mm etc


Machine Parts

Name: Axial Fan

Brand: EBM / ZIEHL-ABEGG / Good China Brand


We have common model in stock. If you need special voltage we can order it for you in 20-30 days.

Main Features

Name: Water tube expanding test

 All evaporators will be tested twice before out of factory. One test is leakage test, put the evaporator in pool to inspect if there is a bubble. Another test is water tube expanding with 10-30Mpa pressure, our stainless steel tube can bear 30Mpa pressure.

Application
1. Steel Industry -- Electrical Arc Furnace / induction furnace cooling
2. Refinery & petrochemicals -- Reactor column cooling
3. Rubber -- Roller cooling
4. Independent Power Stations -- Cooling of engine jacket water, lube oil and inter-stage cooler
5. Plastics -- Cooling of injection molding machine
6. Textiles -- Condensation of process vapour
7. Refrigeration / Air conditioning -- as condenser for air cooled chillers
8. Power Industry -- Turbine lube oil cooler / turbine intercooler
Our Service

Software

* We have heat exchange calculation software which can offer optimal solution.

Stainless steel automatic welding Tech

* Imported from Germany and it offer good appearance and high strength.

Our Company
Jiangsu Victory Hot-Cooling Technology is a Manufacture + Technical Design company with over 15 years experience.

Our main products are as below :

* Heat exchanger coils in all types

* Evaporator & Air Cooler ; Condenser ; Dry Cooler

* Evaporative condenser / cooling tower

Our heat exchange coil has been exported to USA, Canada, Australia, South Africa etc.
Packing & Delivery
Packaging
Size
As per dry cooler size
Weight
200kg-1000kg



Packaging Details
The normal package is wooden box.If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
